Data Transfer Guide: EOS ↔ PFS

This guide explains how to transfer data from EOS to PFS or from PFS to EOS using Argo Workflows.

You can use these workflows to schedule or automate periodic data movement jobs between your object storage buckets and parallel filesystem volumes.

Prerequisites

Before running any workflow:

• You must have an existing EOS bucket. To create an EOS, follow this link

• You must have a PFS filesystem created and mounted to an instance. To create a PFS, follow this link

• Ensure your access credentials:

  • bucket_access_key

  • bucket_secret_key

info

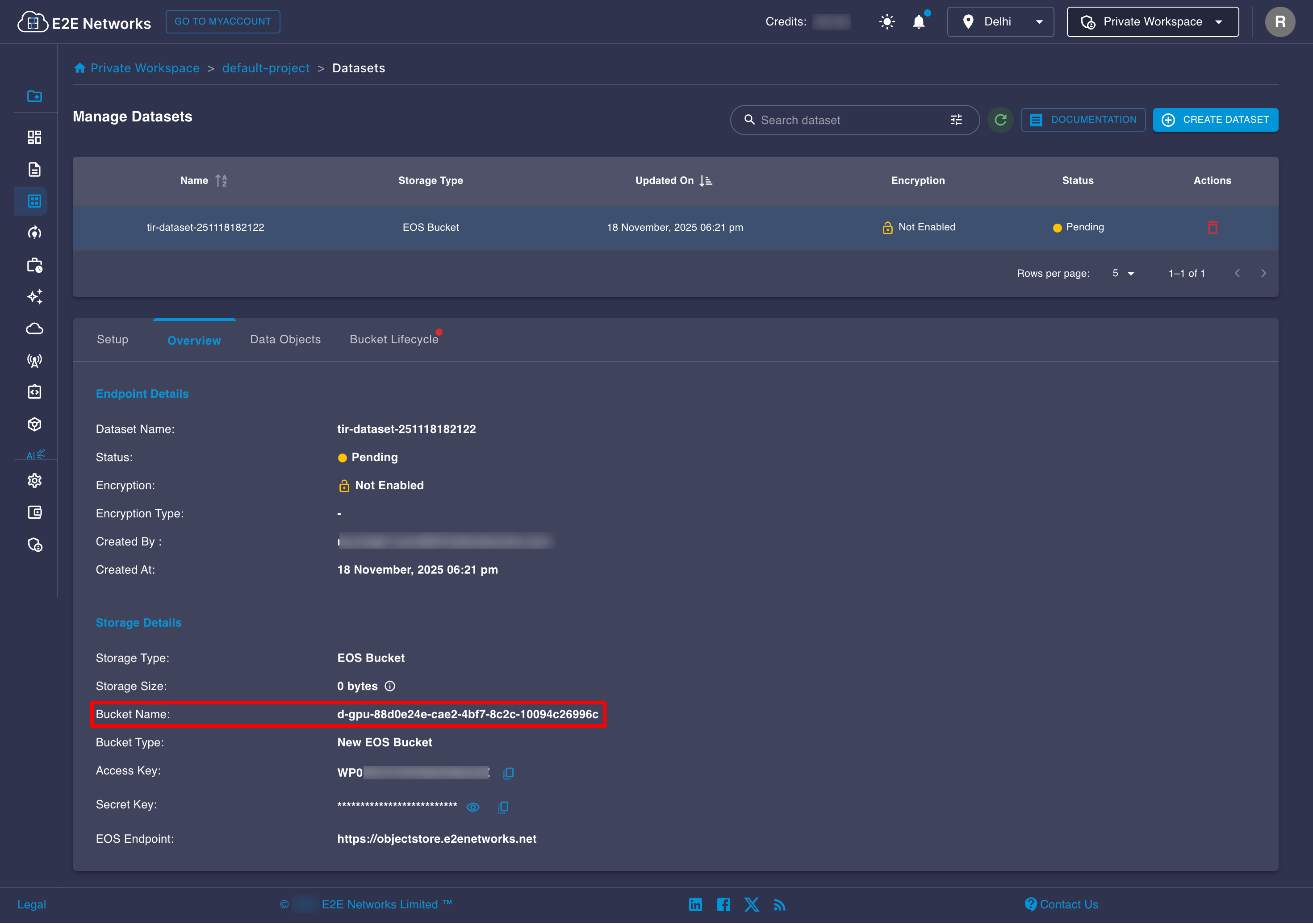

You can view the Bucket Name in the Dataset’s Overview tab.

Transfer Data: PFS → EOS

This workflow uploads files from your PFS to your EOS bucket.

Required Parameters

Parameter	Description
source_fs_name	Name of the filesystem
source_path	Path inside the filesystem to upload
destination_bucket_name	EOS bucket name
destination_path	Destination folder inside the bucket
bucket_endpoint_url	EOS endpoint (default included)
bucket_access_key	Your EOS access key
bucket_secret_key	Your EOS secret key

Create Pipeline

Download fs-to-eos.yaml

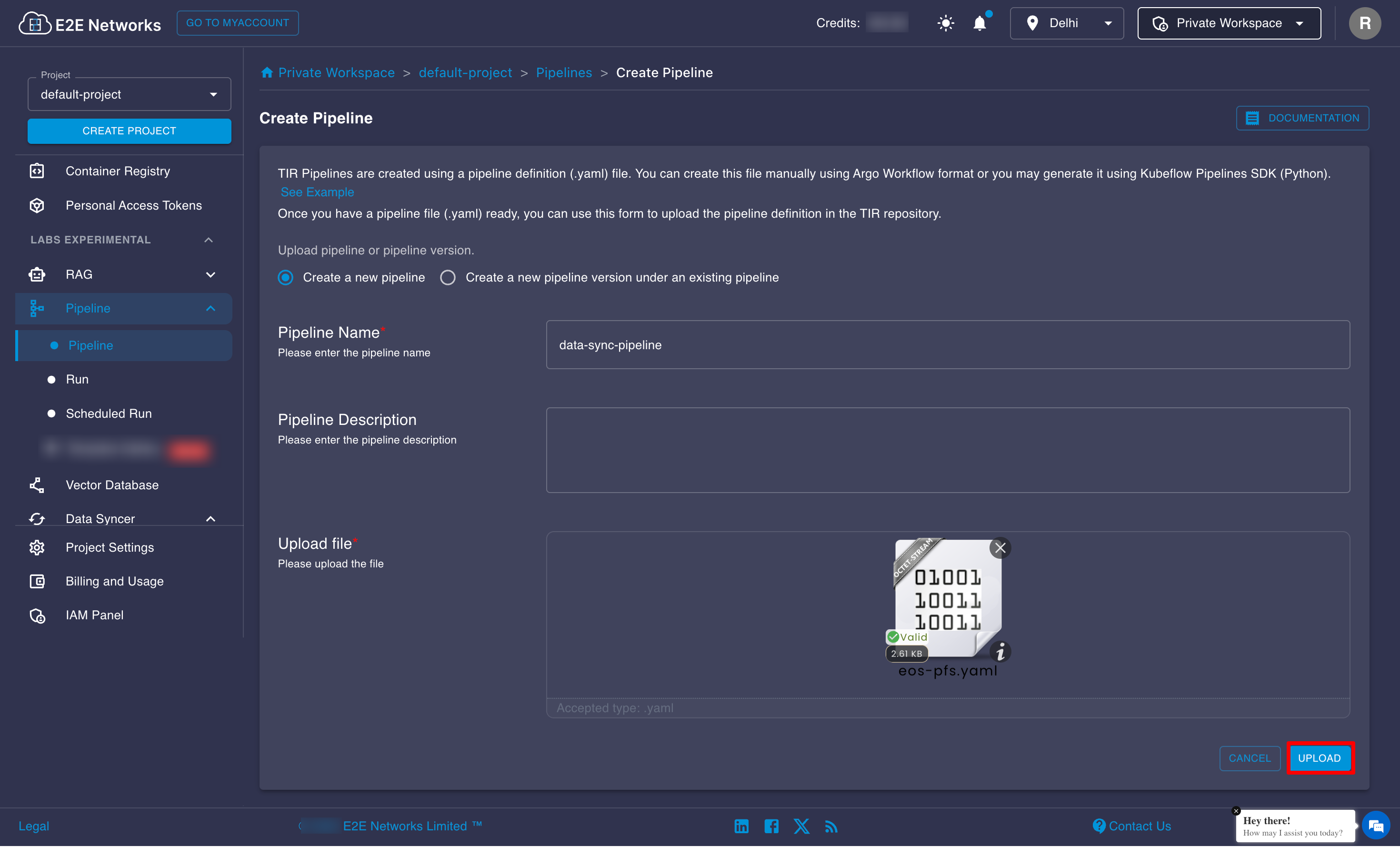

Now create a pipeline using the fs-to-eos.yaml file. For more details about creating pipeline follow this link

note

Enter the correct parameters in the YAML file, such as source_fs_name, source_path, and others. You may also fill them in manually while creating a run for this pipeline.

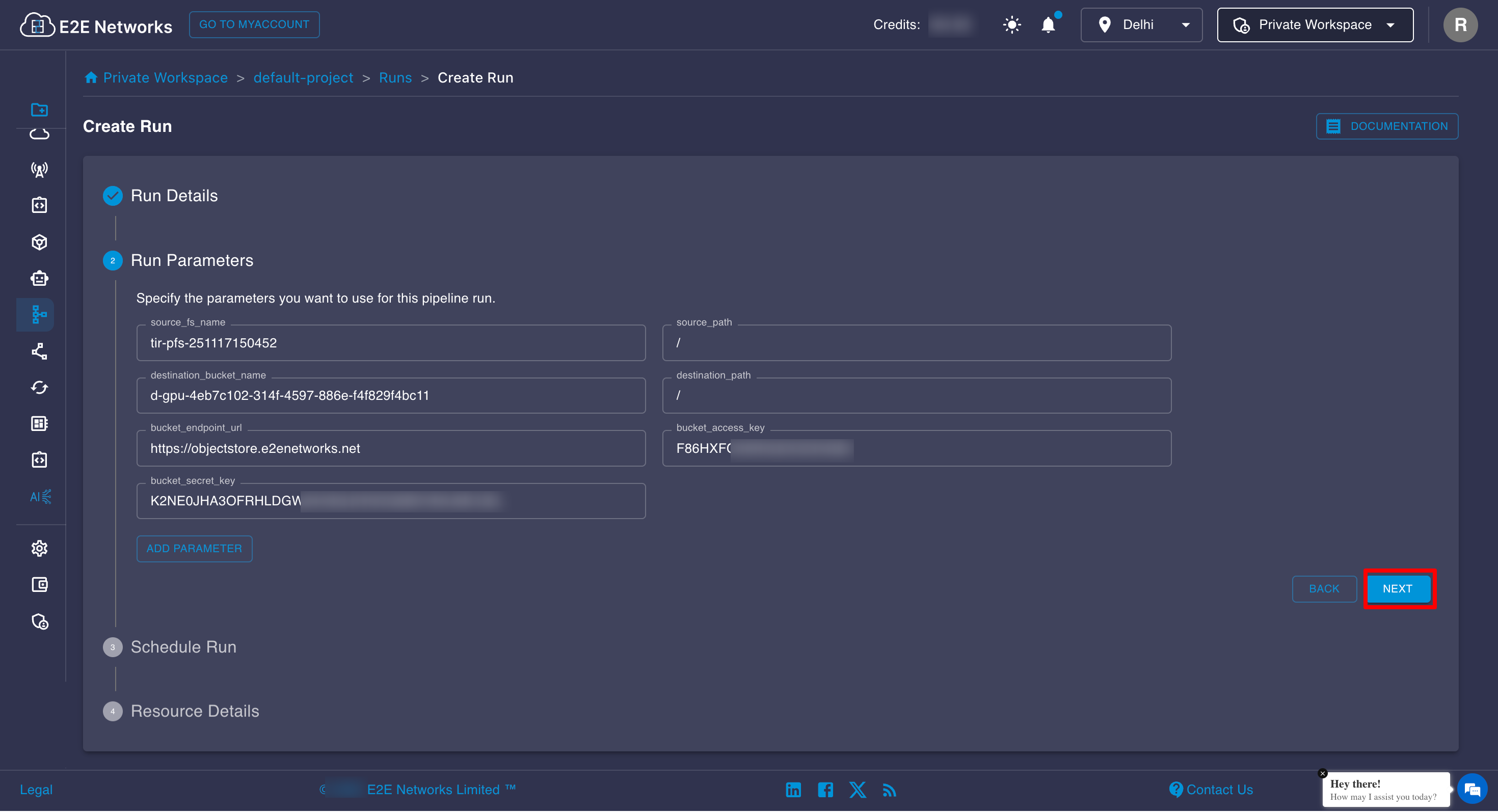

Now create a run for the pipeline. While creating the run, make sure to provide the correct parameters; otherwise, they will be automatically fetched from the YAML file if already specified.

For more details about creating a run for the pipeline, follow this link

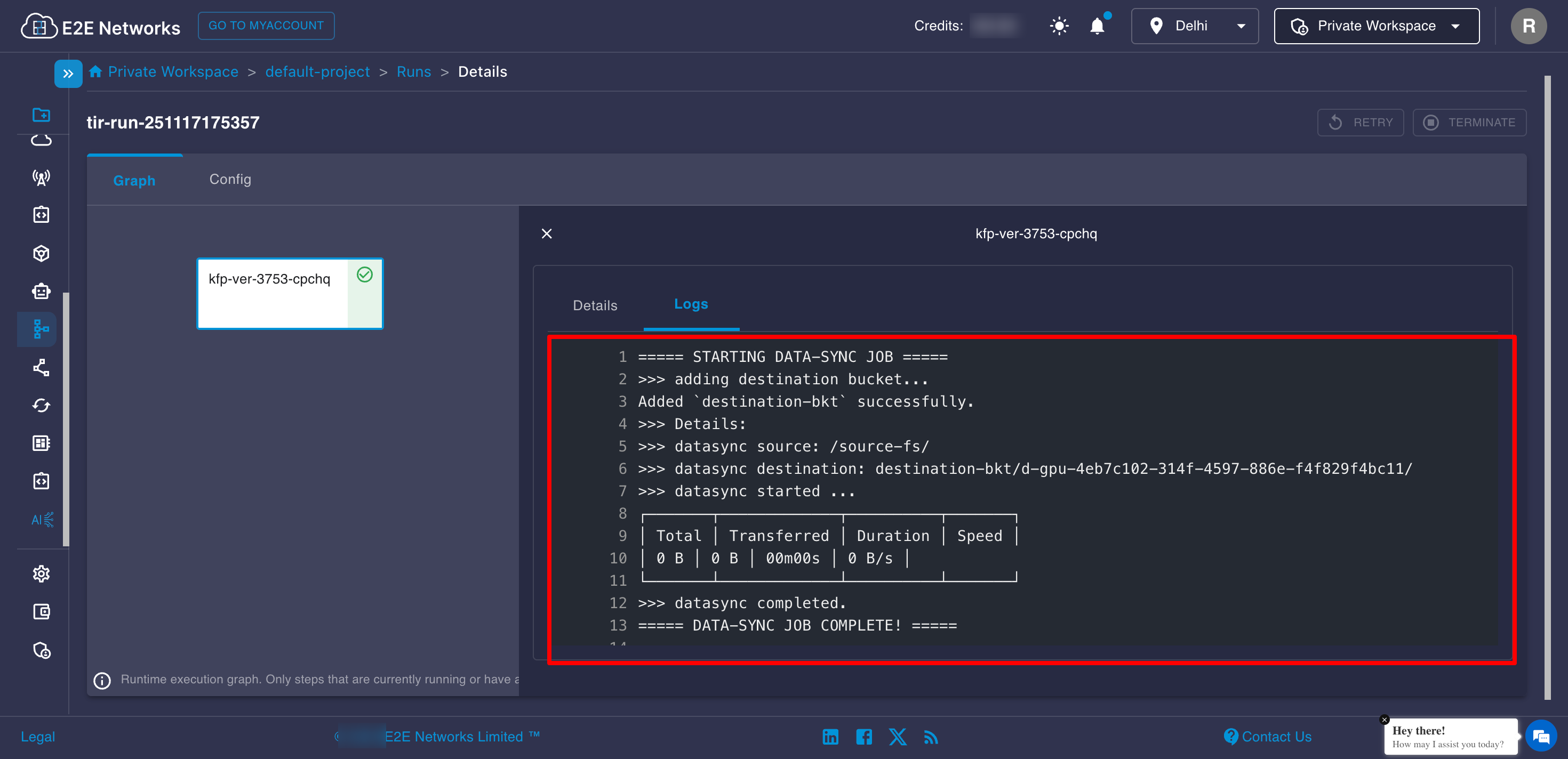

Once the run completes successfully, you will see the following logs.

Transfer Data: EOS → PFS

This workflow downloads data from your EOS bucket into your PFS filesystem.

Required Parameters

Parameter	Description
source_bucket_name	EOS bucket name
source_path	Folder/object prefix in the bucket
destination_fs_name	Target PFS filesystem name
destination_path	Folder inside filesystem to store data
bucket_endpoint_url	EOS endpoint
bucket_access_key	EOS access key
bucket_secret_key	EOS secret key

Create Pipeline

Download eos-to-fs.yaml

Now create a pipeline using the eos-to-fs.yaml file. For more details about creating pipeline, follow this link

note

Enter the correct parameters in the YAML file, such as source_bucket_name, source_path, and others. You may also fill them in manually while creating a run for this pipeline.

Now create a run for the pipeline. While creating the run, make sure to provide the correct parameters; otherwise, they will be automatically fetched from the YAML file if already specified.

For more details about creating a run for the pipeline, follow this link

Once the run completes successfully, you will see the following logs.
