Firewall

Introduction​

A firewall is a security product that filters out malicious traffic. Traditionally, firewalls have run in between a trusted internal network and an untrusted network – e.g., between a private network and the Internet.

With E2E Network Firewall, you can define firewall rules that provide fine-grained control over network traffic. Network Firewall works together with E2E Firewall Manager so you can build policies based on Network Firewall rules and then centrally apply those policies across your virtual private clouds (VPC) and accounts.

Logging into E2E Networks ‘My Account’​

  • Login to MyAccount portal using your credentials set up at the time of creating and activating the E2E Networks ‘My Account’.
  • After you log in to the E2E Networks ‘My Account’.

On the left-hand side of the MyAccount dashboard, click on the “Firewall” sub-menu available under the “Network” section.

Firewall

  • You will be redirected to the ‘Firewall’ page.

Add New Firewall​

You have to click on the Add New Firewall button.

Add New Firewall

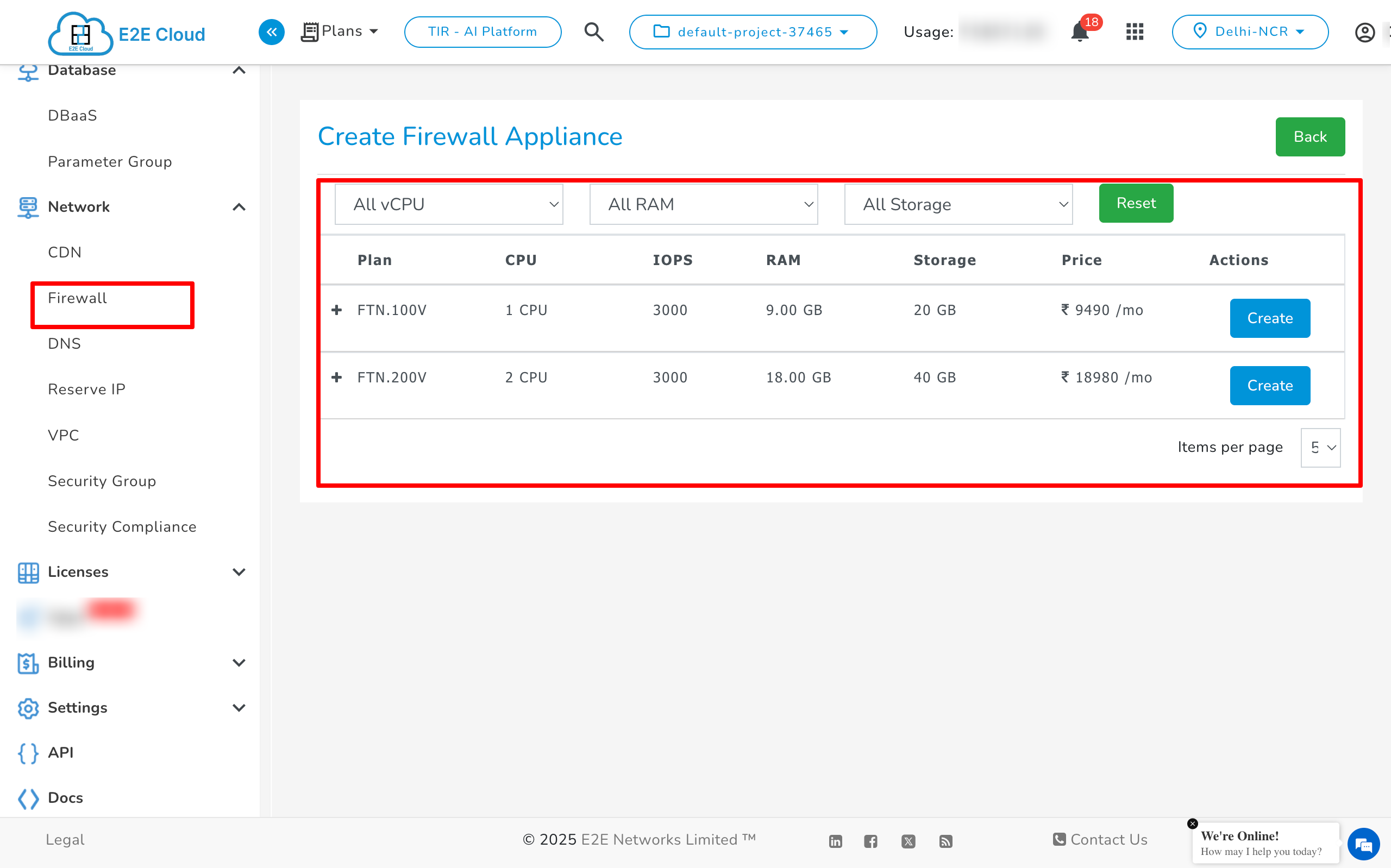

After clicking on the Add New Firewall button, the Create Firewall Appliance page will open where you need to select your plan as per your requirement, then click on the Create button. After that, choose a plan, then again click on the create button.

Create Firewall Appliance


Create Firewall Appliance

After completion of the above process, the Create Firewall Appliance form will open, and you have to fill in the details and click on the Create My Firewall button. After that, a confirmation popup will open, then click on Proceed.

Create My Firewall Create My Firewall

After creating the firewall, the page will be redirected to the list page, and your created firewall will be shown in the list.

Firewall List

Firewall Detail​

In the Firewall detail, the details of the firewall will be shown whatever you have saved at the time of creation of the Firewall.

Firewall Detail

Network​

In the Network tab, you can associate multiple networks. For that, you have to click on "Click here to add" hyperlink and select the network from the dropdown, then click on attach VPC.

Network Tab

Actions​

There are many actions in Firewall like Access Console, Power off, Reboot, Reinstall Firewall, Lock Firewall, and Delete Firewall.

Actions

Access Console​

Using Access Console, you can directly access the firewall.

Access Console


Access Console

Power off​

To power off, you have to click on the Action button and then click on the Power off button. A confirmation popup will open, and you have to confirm that, and your firewall will be powered off.

Power Off


Power Off Confirmation

Reboot​

To reboot the firewall, you have to click on the Action button, then click on the Reboot button. A confirmation popup will open, and you have to confirm that, and your firewall will reboot.

Reboot


Reboot Confirmation

Reinstall Firewall​

To reinstall the firewall, you have to click on the Action button, then click on the Reinstall button. A confirmation popup will open, and you have to confirm that, and your firewall will be reinstalled.

Reinstall Firewall


Reinstall Confirmation

Lock Firewall​

To lock your firewall, you have to click on the Action button and click on the Lock button. A confirmation popup will open, and you have to confirm that, and your firewall will be locked.

Lock Firewall


Lock Confirmation

Delete​

To delete the firewall, you have to click on the Action button, then click on the Delete button. A confirmation popup will open, and you have to confirm that, and your firewall will be deleted.

Delete


Delete Confirmation
