Reserve IP Address

You can reserve IP addresses from MyAccount.
A Reserved IP address is a public IPv4 address. Reserving an IP address ensures that it will be reserved for your MyAccount. This can be used for dynamic cloud computing and is reachable from the internet.

Reserve IPs allow you to create cloud server infrastructures without any single points of failure. With a reserved IP, you can mask resource failures due to increased load or outages by rapidly remapping the address to another instance in your MyAccount. Alternatively, you can dynamically update backend resources by re-assigning the Reserve IP with minimal downtime.

For example, since DNS propagation takes time when A records of a domain change, reserving an IP address lets you move to a new resource without changing A records—useful when transitioning between series (e.g., C2 to Smart Dedicated).

Basic Characteristics of a Reserve IP Address

• To use a Reserve IP, first reserve it from an IP pool or your resource’s default public IPv4. Only after this can it be used as an Add-On or Primary Public IP.
• You can attach a Reserve IP as an Add-On IP, associating it with the primary network interface of a resource. Note that the default primary public IPv4 will not return to E2E’s IP pool when an Add-On Reserve IP is attached.
• A Reserve IP can also serve as the primary public IP during new resource creation (e.g., a Node or Load Balancer).

Note: If a reserved IP is not set as primary during resource creation, a random static public IP will be assigned by default.

You can replace the default public IP with a reserved IP at any time. However, detaching the default IP without reserving it will return it to the E2E Networks IP pool.

Reserve IPs are flexible. They can be detached and re-attached to other resources. A detached Reserve IP remains reserved in your MyAccount until explicitly released.

Billing: Reserved IPs cost ₹199/month (excluding GST), regardless of usage. Prepaid customers will have credits deducted upon reservation, while postpaid customers will see charges on their monthly invoice.

E2E Networks enforces a default Reserve IP limit per account. Contact support if you need a higher limit.

---

Navigate to the Manage Reserve IP Page

1. Visit MyAccount and log in with your credentials.
2. In the MyAccount dashboard, under the Networking section, click Reserved IP in the sidebar.
3. You’ll be taken to the Manage Reserved IP page.

---

Working with Reserve IP Addresses

Reserve a New IP Address

1. Click + Reserve New IP to open the reservation popup.



2. Confirm your action by clicking Reserve a new IP.

3. The new IP will appear on the Manage Reserved IP page with a status of Available (i.e., not yet attached to any resource).



---

Reserve a Resource’s Public IP

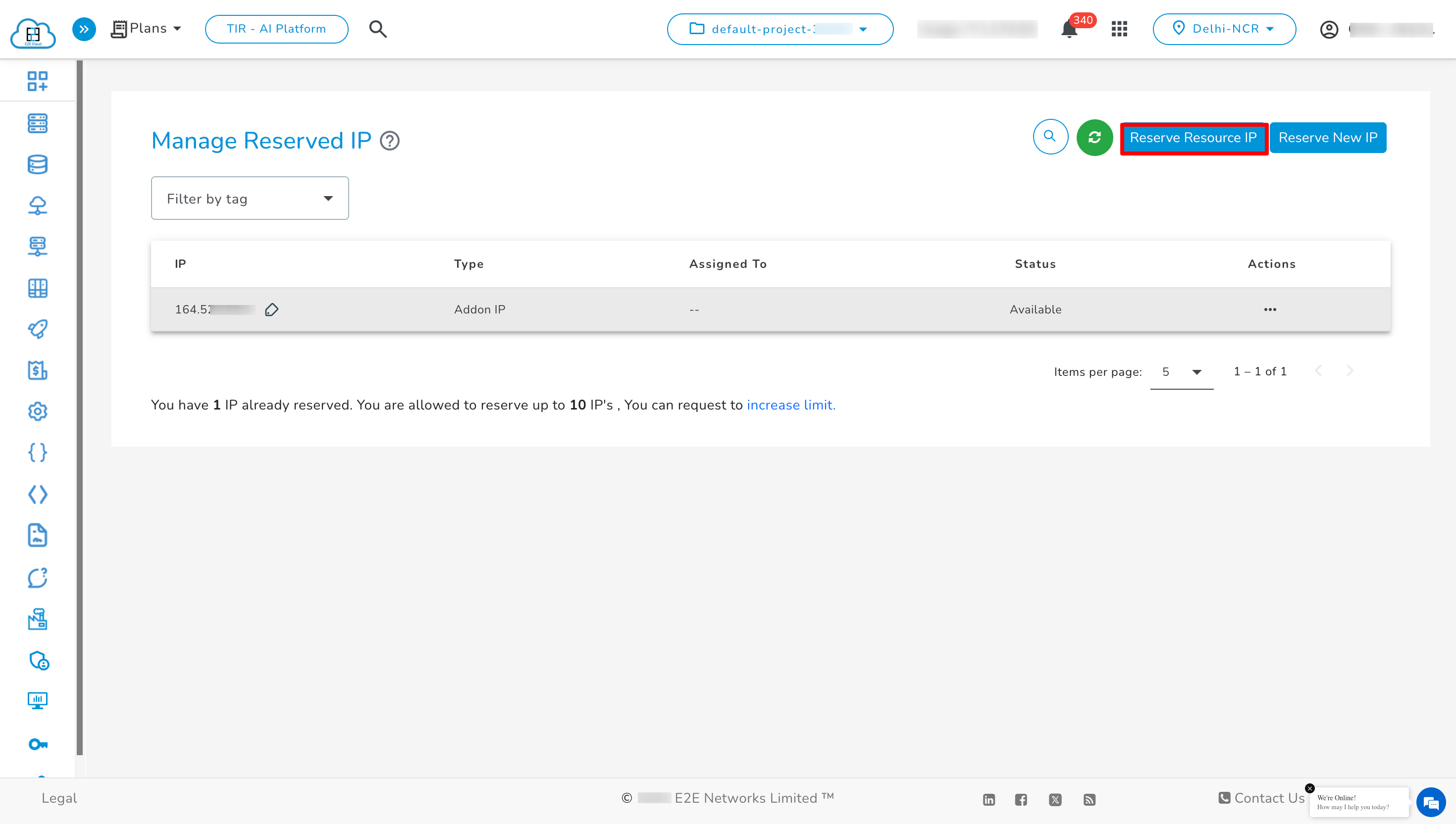

1. Click Reserve Resource IP to open the Reserve Resource IP popup.








2. Select the product type (e.g., Node or Load Balancer) from the dropdown.

3. Choose the resource to assign the IP.

4. Click Reserve IP to confirm.

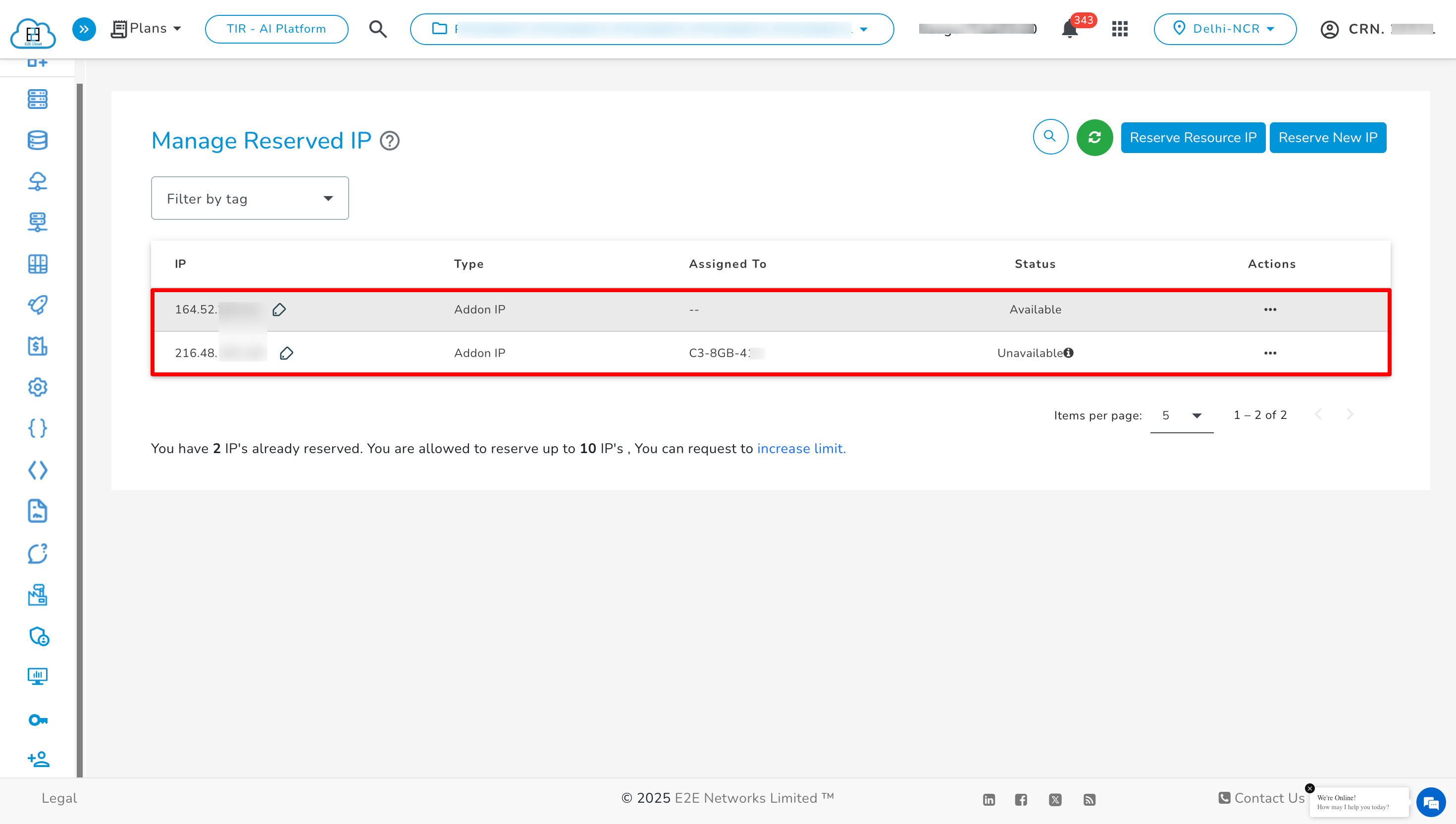

The resource’s public IP will now be reserved, with the Status updated to Unavailable (attached to an active resource).

---

Attach Reserve IP as an Add-On IP

1. Click Actions → Attach IP for the desired Reserve IP.



Note: You cannot attach an IP if its status is Unavailable or Attached.

2. The Attach Reserve IP popup will appear.



3. Select the product and resource to which the IP should be assigned.

4. Confirm by clicking Attach IP. The status and assigned resource will update in the table.



You can also view attached IP details under the Node Details or Load Balancer Details tabs.

Tip: Multiple Reserve IPs can be added as Add-On IPs to a resource.

---

Detach Add-On Reserve IP

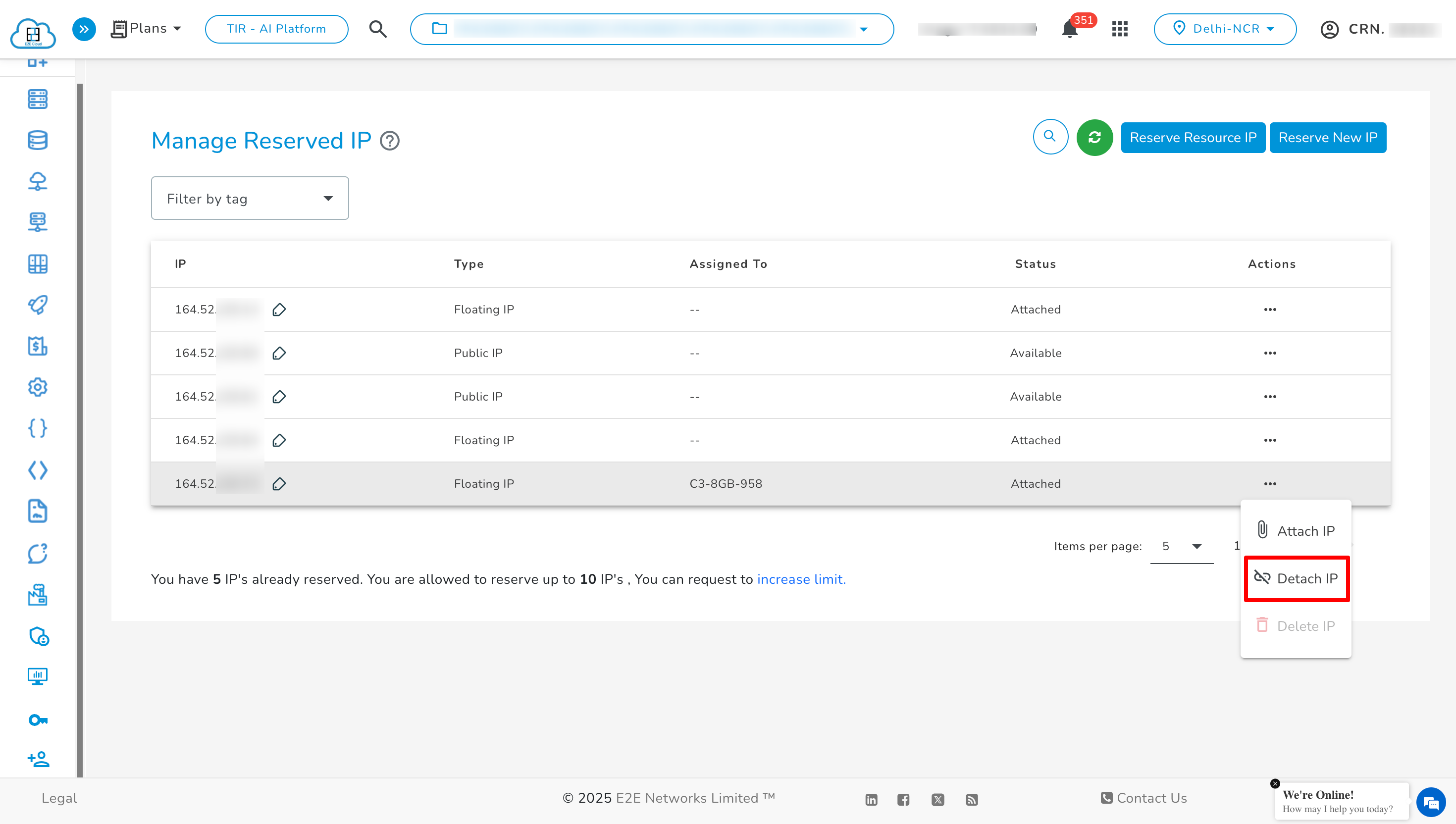

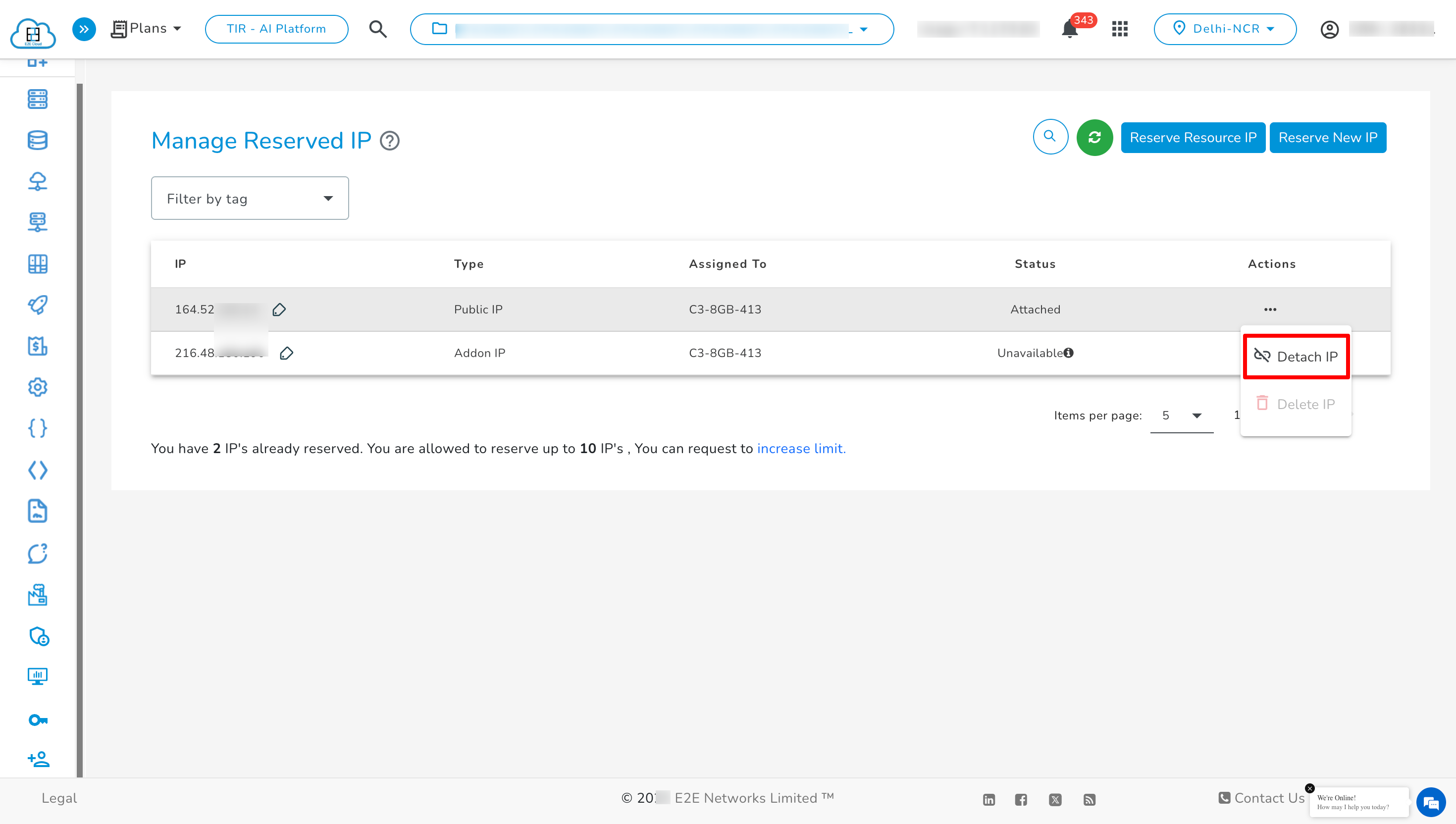

1. To detach a Reserve IP, click Actions → Detach IP.

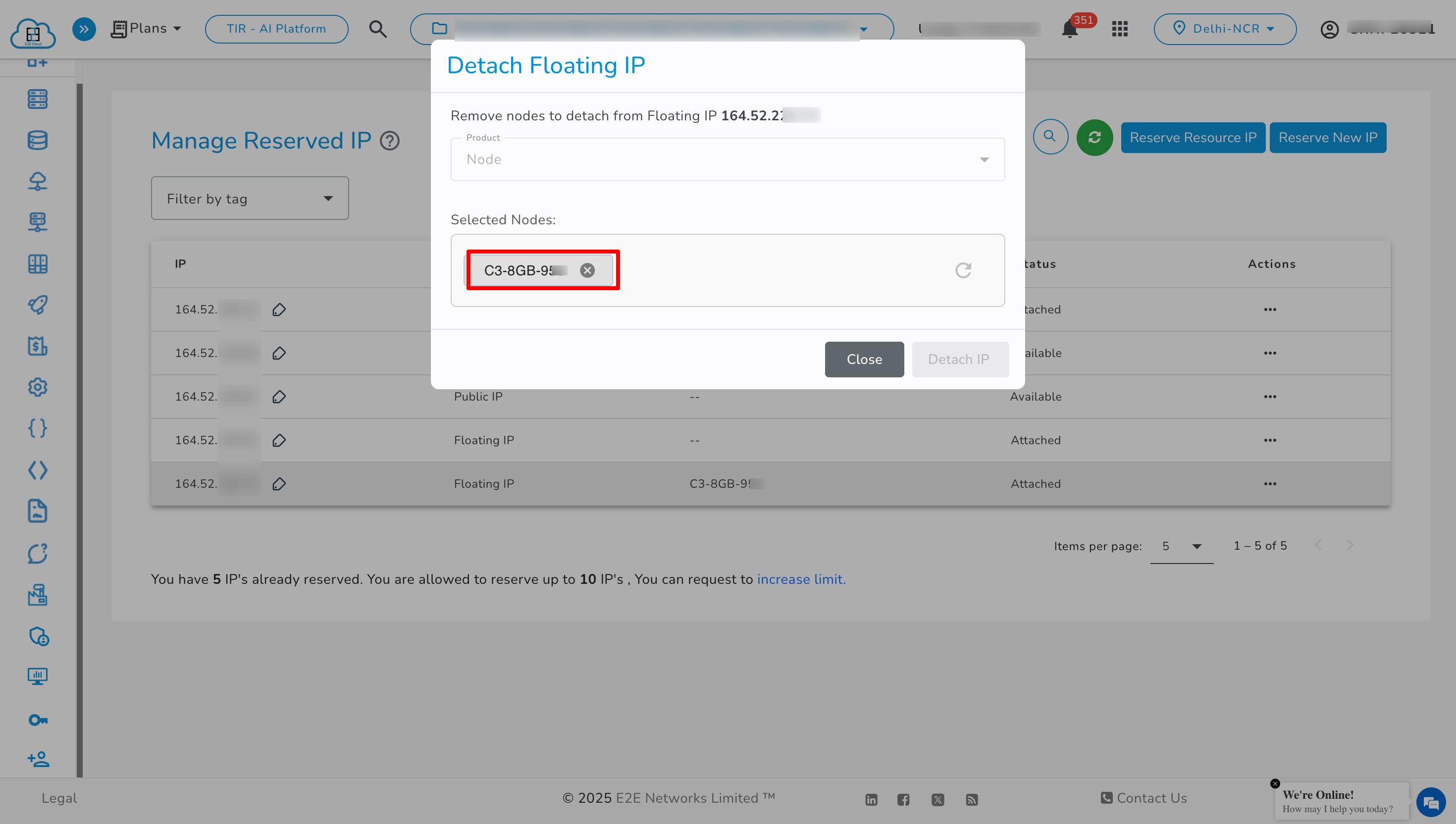

2. The Detach Reserve IP popup will appear.

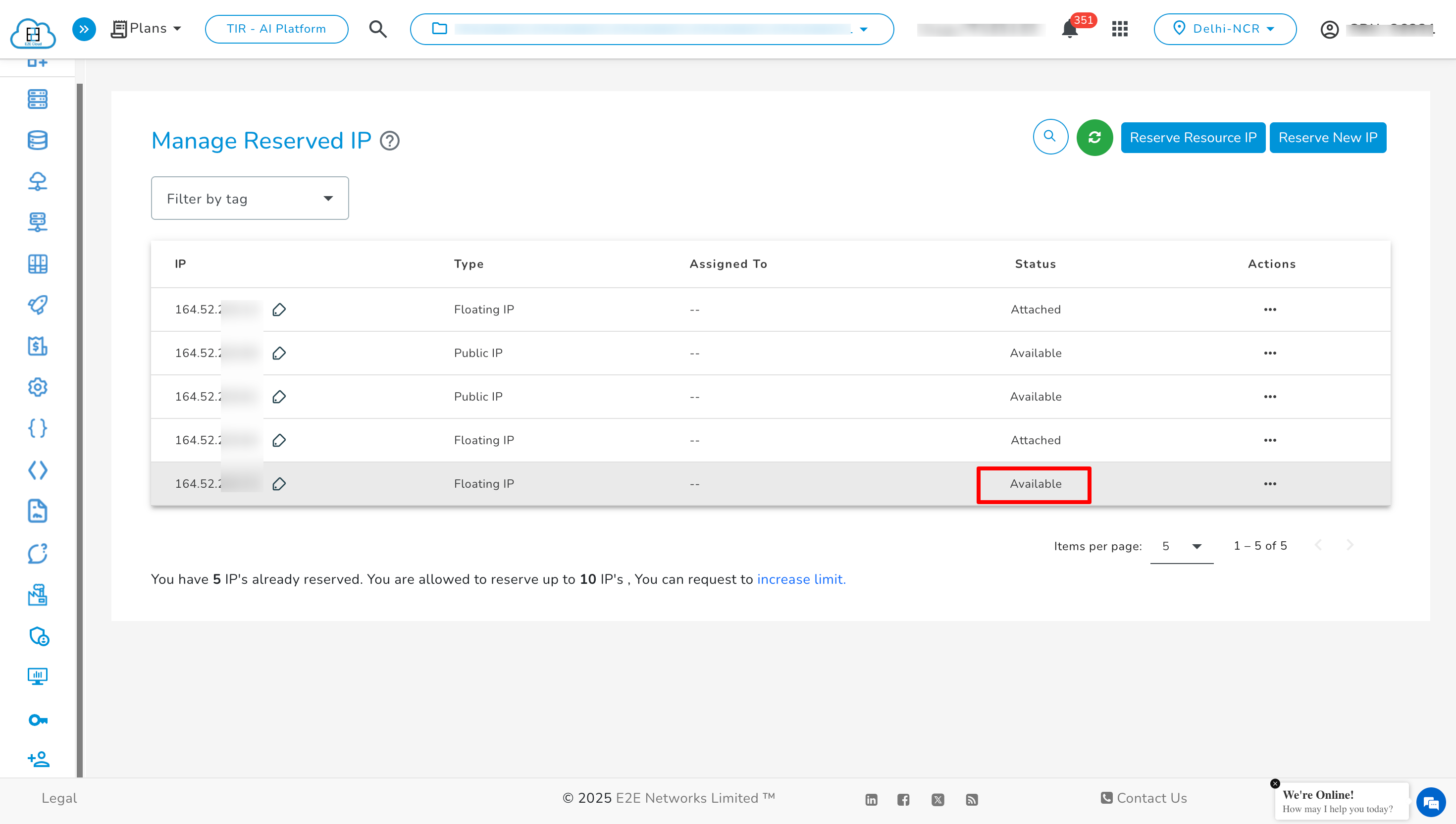

3. Confirm by clicking Detach IP. The status and assigned resource information will be updated in the table.



Tip: Add-On IPs can also be detached from the Network Tab of the Node or Load Balancer detail page.

Move Reserve IP To Another Project

Using this action, you can transfer your reserved IP from its current project to another project within the same CRN.

Note:
To transfer the reserved IP:

1. Ensure the reserved IP is not in Attached or Unavailable state.
2. The reserved IP must not have any Tags attached.

To transfer the reserved IP, click the Move To Another Project button in actions.

Next, click Move To Another Project from Actions, select the target project, check the checkbox, and click Transfer.

Note:
An audit log will be created for the transfer in both the current and target projects during the process.

---

Delete Reserve IP

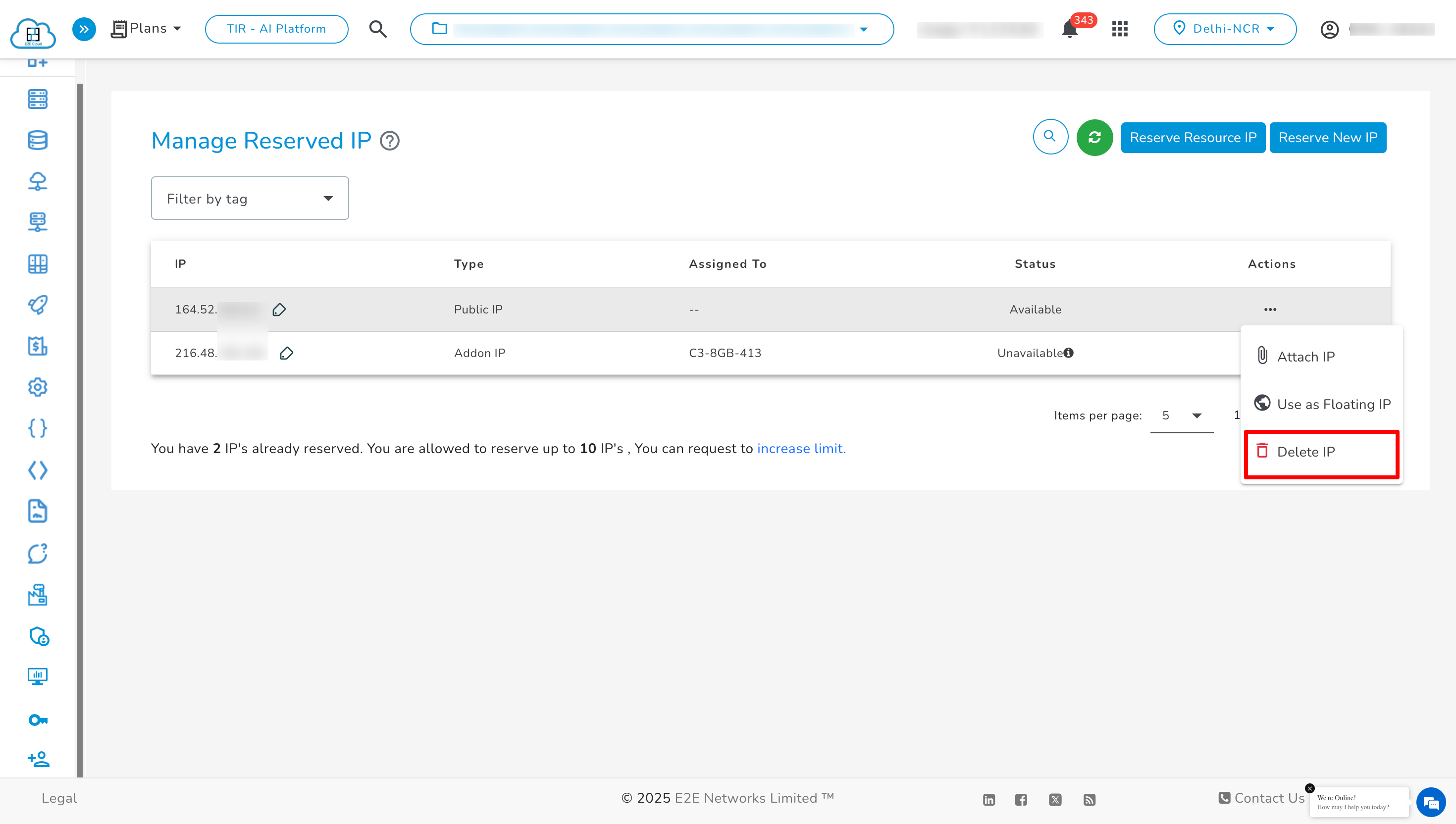

• Click on the Actions button and select Delete IP to delete a reserved IP with the status Available or Unavailable.

Note:
You cannot delete a reserved IP when its status is Attached. First, detach the reserved IP from the associated resource before attempting deletion.

• A confirmation pop-up will appear.

• Click Delete IP after reviewing the pop-up information.
• The reserved IP will be released back into E2E Networks' IP address pool.

Note:
Please exercise caution before deleting the reserved IP, as it will not be recoverable once released.

---

Request for Reserve IP Limit Increase

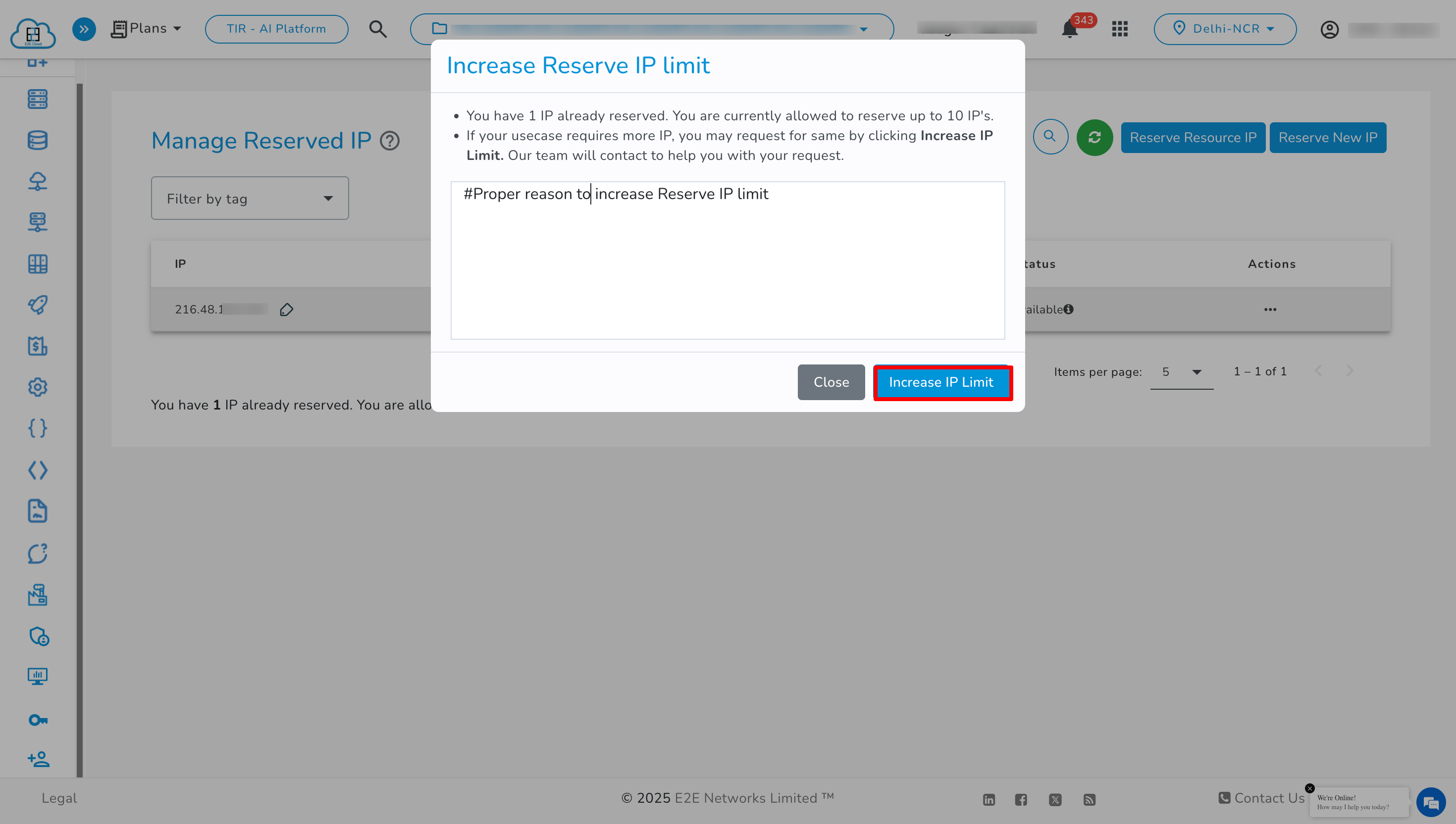

• There is a default limit on the number of reserved IPs per user. If your use case requires additional public IPs, you can request an increase by clicking Increase IP Limit.

• If the limit is exceeded, a Reserve IP Limit Exceeded pop-up will appear when you attempt to reserve a new IP.

• Enter your use case details in the text box and click Increase IP Limit.

• The E2E Networks Customer Communications Team will review your request, and you will be notified of the outcome via email.

• If required, the team may contact you to assist with your request.

• Once approved, you can reserve a new IP address or assign the IP address of a resource via MyAccount.

---

New Node Launch Using Reserve IP

• To use a reserved IP as the primary public IP for your node, select the Reserve IPv4 checkbox while creating the node.
• Choose the reserved IP from the Select IP dropdown.
• If you do not have a reserved IP, click Reserve New IP to allocate one from the IP pool.

• Click Reserve a New IP after reviewing the pop-up information. The new IP will be added to the dropdown.

• After selecting the reserved IP, specify the node name and other options, then click Create.

• The node will take a few minutes to set up, and you will be redirected to the Manage Node page.

---

Reserve Node’s Default Public IP Address

• You can reserve a node's public IP when terminating the node.
• Go to the Compute sub-menu under Products to access the Manage Nodes page.

• Select the node, navigate to the Network tab, and click Want to reserve this Public IP? Click Here.
• A Reserve IP Address pop-up will appear.
• Click Reserve IP after reviewing the pop-up.

Alternatively:

• When terminating a node, click the Delete Node button in the node details tab.

• In the Delete Node pop-up, select the Reserve the Node’s IP checkbox and click Delete.

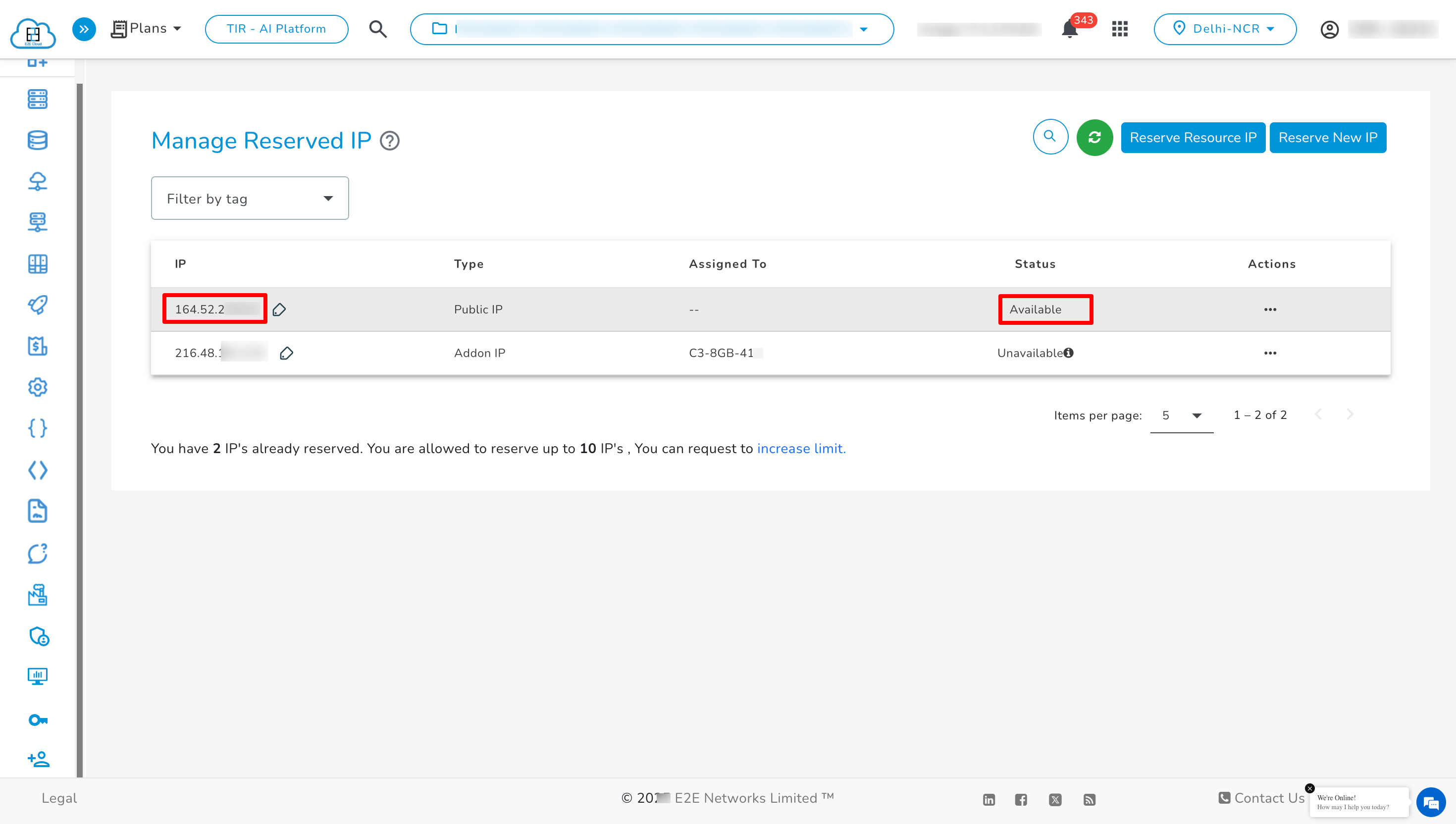

• The node’s IP will be reserved and listed as Available on the Manage Reserved IP page.

---

Detach Node’s Primary Public IP

• To detach the primary public IP from a node, go to the Compute sub-menu under Products to access the Manage Nodes page.
• Select the node, open the Network tab, and click Detach IP next to the public IPv4 address.

Note:
If the primary public IP is not reserved before detachment, it will be released back into E2E Networks' public IP pool.

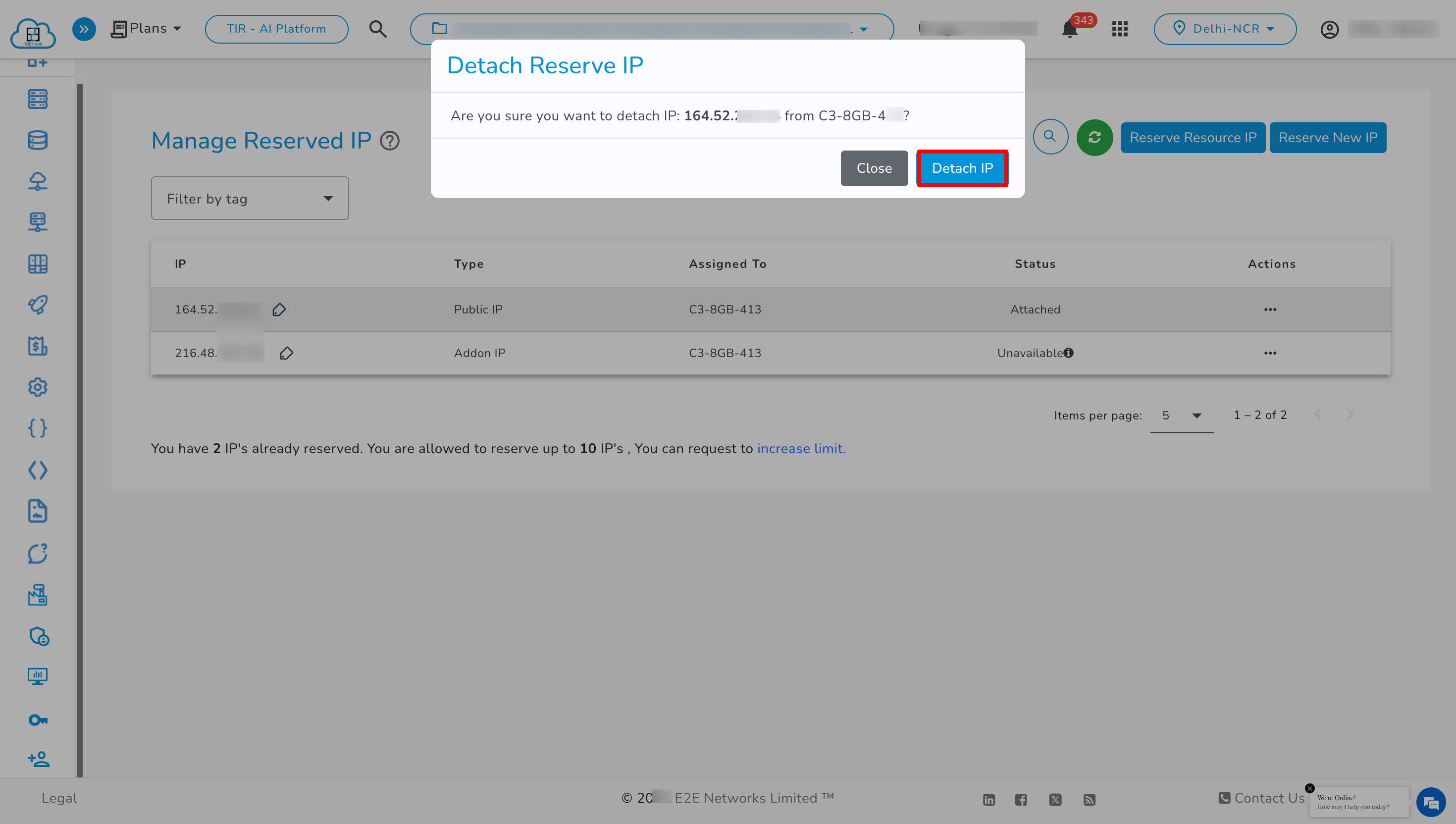

• A Detach Reserve IP pop-up will appear.

• Click Detach IP after reviewing the information in the pop-up.
• The node will no longer have a public IP assigned.

New Load Balancer launch using Reserve IP

• To use a reserved IP as the primary public IP of your load balancer instance, tick the ‘Use Reserve IP’ checkbox available under the network section while creating a new load balancer.
• From the ‘Select IP’ drop-down list, select the reserved IP you wish to assign as the primary public IP.
• If you don’t have a Reserve IP or wish to reserve a new one, click the ‘Reserve New IP’ button to get a new public IP from the pool. A ‘Reserve New IP’ pop-up window will appear.

• Click on “Reserve a new IP” after reading the information on the pop-up window. A new public IP address will be reserved and listed in the dropdown list.
• After selecting the reserved IP and specifying the backend and frontend configurations, click the ‘Deploy’ button.
• It will take a few minutes to set up the load balancer, and you will be redirected to the ‘Manage Load Balancer’ page.

Reserve Load Balancer’s Default Public IP Address

• You can also reserve a Load Balancer’s default public IP while terminating it. Navigate to the ‘Manage Load Balancer’ page by clicking on the “Load Balancer” sub-menu under the Products section.

• Select the load balancer and go to the load balancer details tab.

• Click the ‘Want to reserve this Public IP Click Here’ button available below the public IPv4 address.

• A ‘Reserve IP Address’ pop-up window will appear.

• Click the ‘Reserve IP’ button after reading the information on the pop-up window.

Else:

• When terminating a node, click on the Actions button and select ‘Delete’.

• In the ‘Delete Load Balancer’ pop-up window, tick the ‘Reserve the LoadBalancer’s IP’ checkbox and click the ‘Delete’ button.

• The Load Balancer’s IP address will be reserved for your MyAccount.

• This reserved IP will be listed in the ‘Manage Reserved IP’ page. Its status will be ‘Available’ as it’s not attached to any resource.

Detach Load Balancer’s Primary Public IP

• To detach the primary public IP, go to the ‘Manage Load Balancer’ page via the “Load Balancer” sub-menu under the Products section.
• Select the load balancer and click the ‘Detach IP’ button in the details tab.

Note:
The primary public IP will be released back into E2E Networks's pool if it was not reserved before detaching.

• A ‘Detach Reserve IP’ pop-up window will appear.

• Click the “Detach IP” button after reading the information on the pop-up window.
• After detaching, the load balancer will no longer have a public IP.

Reserve IP Pool

Introduction

Reserve IP pool, also known as a customer-owned IP pool, is a reserved range of IP addresses that can connect an on-premises network to resources in Outpost subnets, locally or externally.

To add a customer-owned IP pool, contact sales@e2enetworks.com.

New Node launch using Reserve IP Pool

• To use a reserved IP Pool for your node, tick the ‘Reserve IP Pool’ checkbox in the networks section when creating a new node.
• From the ‘Select IP Pool’ drop-down list, select the reserved IP Pool you want to assign as the Private IP.

• The attached Reserve IP Pool IP will be shown under AddOn IPV4.

• View the Reserve IP Pool under Networks > Reserve IP > Customer Owned IP Pool.

• Attach the Reserve IP Pool to a node from the Customer Owned IP Pool section.

• The attached IPs will appear in the list.

• Attached IPs can be detached from the Detach IP tab.

How to manage Reserve IP Pool on Node Deletion?

• When deleting a node, click the ‘Delete Node’ button in the node Action tab.

• In the ‘Delete Node’ pop-up window, tick the checkbox to reserve the node's IP from the attached pool and click ‘Delete’.

• The node’s IP address will be reserved for your MyAccount.

• The reserved IP will be listed under the Customer Owned IP Pool Reserved IPs section with the status ‘Available’.

Detach Reserve IP Pool from Node

• Click the ‘Detach IP’ button next to the public IPv4 address.
• A ‘Detach Reserve IP’ pop-up window will appear.
• Click the “Detach IP” button after reading the pop-up information.
